Espiga Curva 90º para Tuerca

Tamaño

Limpiar

SKU: 116210 Categorías: Racoreria, Racoreria De Plastico

Descripción
Información adicional

Datos Técnicos

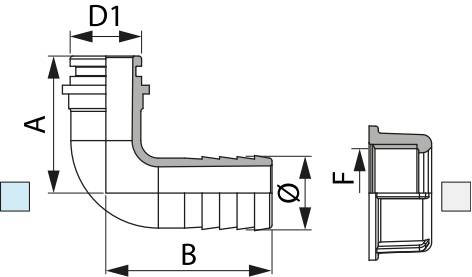

Medidas

CÓDIGO	A	B	COD. OR EPDM	D1	F Tuerca	Ø	Quantita Conf.
116210	35mm	33mm	G11060	13.7mm	G 1/2″	10mm	25
116313	40mm	36mm	G10031	17.5mm	G 3/4″	13mm	25
116315	37mm	45mm	G10031	17.5mm	G 3/4″	16mm	25
116320	39mm	45mm	G10031	17.5mm	G 3/4″	20mm	25
116415	37mm	45mm	G10041	24.5mm	G 1″	15mm	25
116420	37mm	45mm	G10041	24.5mm	G 1″	20mm	25
116425	47mm	57mm	G10041	24.5mm	G 1″	25mm	25
116525	51mm	57mm	G10051	31.5mm	G 1 1/4″	25mm	25
116530	54mm	60mm	G10051	31.5mm	G 1 1/4″	30mm	25
116533	54mm	60mm	G10051	31.5mm	G 1 1/4″	32mm	25
116625	56mm	57mm	G10061	37.5mm	G 1 1/2″	25mm	25
116630	54mm	60mm	G10061	37.5mm	G 1 1/2″	30mm	25
116633	54mm	60mm	G10061	37.5mm	G 1 1/2″	32mm	25
116635	65mm	80mm	G10061	37.5mm	G 1 1/2″	35mm	25
116640	65mm	85mm	G10061	37.5mm	G 1 1/2″	40mm	25
116740	65mm	85mm	G10071 x2	47mm	G 2″	40mm	10
116750	75mm	92mm	G10071 x2	47mm	G 2″	50mm	10
116860	94mm	120mm	G10081 x2	63mm	G 2 1/2″	60mm	5
116960	108mm	120mm	G10091 x2	75mm	G 3″	60mm	5

Tamaño	10 mm. 1/2", 13 mm. 3/4", 16 mm. 3/4”, 20 mm. 3/4", 15 mm. 1”, 20 mm. 1", 25 mm. 1", 25 mm. 1" 1/4, 30 mm. 1" 1/4, 32 mm. 1”1/4, 25 mm. 1" 1/2, 30 mm. 1" 1/2, 32 mm. 1” 1/2, 35 mm. 1” 1/2, 40 mm. 1" 1/2, 40 mm. 2", 50 mm. 2", 60 mm. 2” 1/2, 60 mm. 3”
