Datos Ténicos

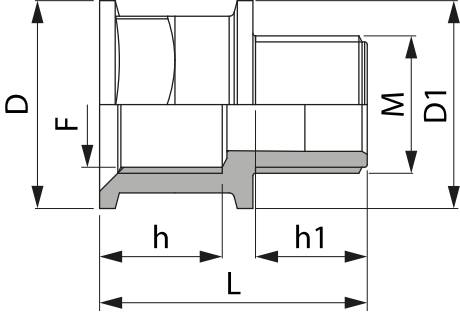

Medidas
| CÓDIGO | – F – | -M- | D | D1 | L | h | h1 | Quantita Conf. |
| 2452022 | G 1/2″ | G 1/2″ | 32mm | 32mm | 44mm | 19mm | 18mm | 25 |
| 2452033 | G 3/4″ | G 3/4″ | 40mm | 40mm | 52mm | 23mm | 22mm | 25 |
| 2452044 | G 1″ | G 1″ | 45mm | 45mm | 52mm | 23mm | 22mm | 25 |
| 2452055 | G 1 1/4″ | G 1 1/4″ | 56mm | 56mm | 56mm | 25mm | 24mm | 25 |
| 2452066 | G 1 1/2″ | G 1 1/2″ | 62mm | 62mm | 56mm | 25mm | 24mm | 10 |
| 2452077 | G 2″ | G 2″ | 76mm | 76mm | 62mm | 28mm | 27mm | 10 |
