Datos técnicos:

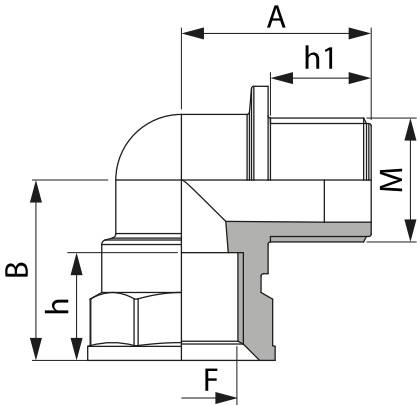

Medidas
| CÓDIGO | – F – | -M- | A | B | COD. OR EPDM | h | h1 | Quantita Conf. |
| 1262022 | G 1/2″ | G 1/2″ | 34mm | 35mm | G10041 | 21mm | 18mm | 25 |
| 1262033 | G 3/4″ | G 3/4″ | 39mm | 41mm | G11058 | 23mm | 22mm | 25 |
| 1262044 | G 1″ | G 1″ | 43mm | 47mm | G11059 | 23mm | 22mm | 25 |
| 1262055 | G 1 1/4″ | G 1 1/4″ | 50mm | 53mm | G10052 | 25mm | 24mm | 10 |
| 1262066 | G 1 1/2″ | G 1 1/2″ | 53mm | 57mm | G10062 | 25mm | 24mm | 10 |
| 1262077 | G 2″ | G 2″ | 63mm | 66mm | G10073 | 28mm | 27mm | 10 |
