Racor Curvo 90º Rosca Macho

Tamaño

Limpiar

SKU: 1132113 Categorías: Racoreria, Racoreria De Plastico

Descripción
Información adicional

Datos Técnicos

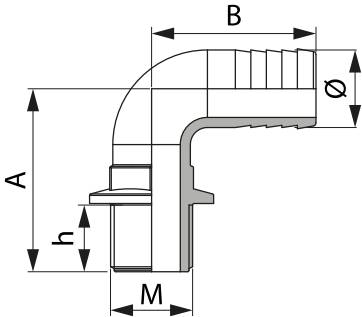

Medidas:

CÓDIGO	-M-	A	B	Tipo	h	Ø	Quantita Conf.
1132113	G 3/8″	41mm	45mm	–	16mm	13mm	25
1132115	G 3/8″	41mm	48mm	–	16mm	16mm	25
1132213	G 1/2″	44mm	45mm	–	18mm	13mm	25
1132215	G 1/2″	44mm	48mm	–	18mm	16mm	25
1132220	G 1/2″	44mm	53mm	–	18mm	20mm	25
1132315	G 3/4″	50mm	48mm	–	22mm	16mm	25
1132320	G 3/4″	50mm	53mm	–	22mm	20mm	25
1132325	G 3/4″	59mm	57mm	–	22mm	25mm	25
1132420	G 1″	50mm	53mm	–	22mm	20mm	25
1132425	G 1″	59mm	57mm	–	22mm	25mm	25
1132430	G 1″	60mm	60mm	–	22mm	30mm	25
1132432	G 1″	60mm	60mm	–	22mm	32mm	25
1132530	G 1 1/4″	62mm	60mm	–	24mm	30mm	25
1132532	G 1 1/4″	62mm	60mm	–	24mm	32mm	25
1132535	G 1 1/4″	70mm	80mm	–	24mm	35mm	10
1132540	G 1 1/4″	70mm	85mm	–	24mm	40mm	10
1132630	G 1 1/2″	62mm	60mm	–	24mm	30mm	10
1132635	G 1 1/2″	70mm	80mm	–	24mm	35mm	10
1132640	G 1 1/2″	70mm	85mm	–	24mm	40mm	10
1132750	G 2″	88mm	89mm	–	27mm	50mm	10
1132960	G 3″	125mm	120mm	–	35mm	60mm	5

Tamaño	13 mm. 3/8", 15 mm. 3/8”, 13 mm. 1/2", 15 mm. 1/2", 20 mm. 1/2", 15 mm. 3/4”, 20 mm. 3/4", 25 mm. 3/4", 20 mm. 1”, 25 mm. 1", 30 mm. 1", 32 mm. 1", 30 mm. 1" 1/4, 32 mm. 1" 1/4, 35 mm. 1" 1/4, 40 mm. 1" 1/4, 30 mm. 1” 1/2, 35 mm. 1" 1/2, 40 mm. 1" 1/2, 50 mm. 2”, 60 mm. 3”
