Datos técnicos

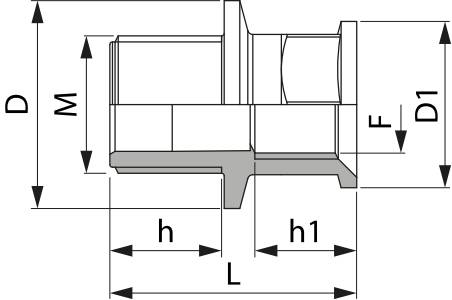

Medidas
| CÓDIGO | – F – | -M- | D | D1 | L | h | h1 | Quantita Conf. |
| 245010 | G 1/4″ | G 3/8″ | 22mm | 22mm | 23mm | 13mm | 10mm | 25 |
| 2452032 | G 1/2″ | G 3/4″ | 40mm | 32mm | 48mm | 22mm | 19mm | 25 |
| 2452042 | G 1/2″ | G 1″ | 45mm | 32mm | 48mm | 22mm | 19mm | 25 |
| 2452043 | G 3/4″ | G 1″ | 45mm | 40mm | 52mm | 22mm | 23mm | 25 |
| 2452053 | G 3/4″ | G 1 1/4″ | 56mm | 40mm | 54mm | 24mm | 23mm | 25 |
| 2452054 | G 1″ | G 1 1/4″ | 56mm | 45mm | 54mm | 24mm | 23mm | 25 |
| 2452064 | G 1″ | G 1 1/2″ | 62mm | 45mm | 54mm | 24mm | 23mm | 10 |
| 2452065 | G 1 1/4″ | G 1 1/2″ | 62mm | 56mm | 56mm | 24mm | 25mm | 10 |
| 2452075 | G 1 1/4″ | G 2″ | 76mm | 56mm | 59mm | 27mm | 25mm | 10 |
| 2452076 | G 1 1/2″ | G 2″ | 76mm | 62mm | 59mm | 27mm | 25mm | 10 |
| 2452097 | G 2″ | G 3″ | 106mm | 76mm | 73mm | 35mm | 28mm | 10 |
